Isolation Tent vs Emergency Tent: What is the Difference?

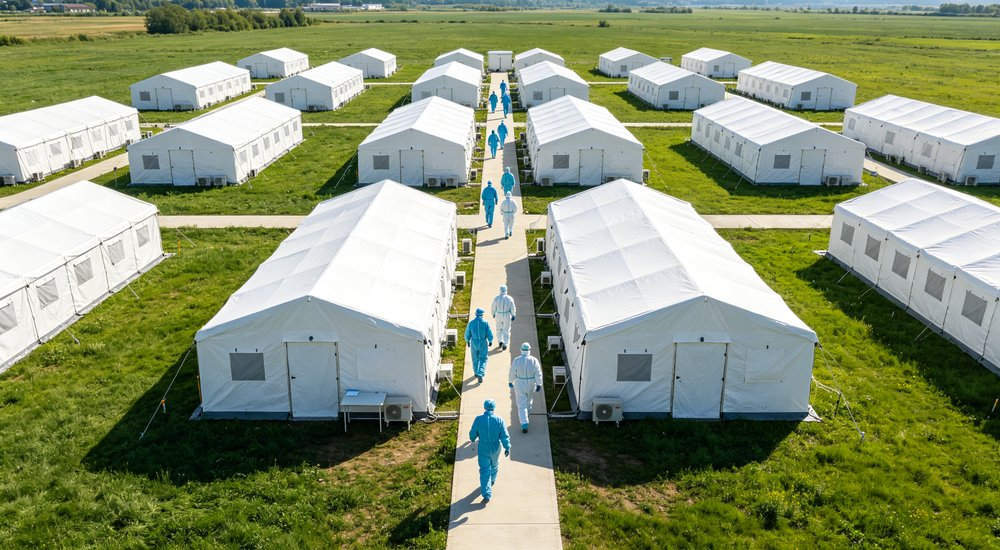

Large scale isolation camp with multiple inflatable tents, aerial view, green grass, blue sky red and white inflatable emergency shelter for disaster relief operations

A general emergency tent creates temporary covered space. An inflatable isolation tent must support a defined environmental-control system — airflow, pressure, filtration, monitoring, alarms, power. The difference is NOT a sealed-looking cover or an added fan. As a direct isolation tent manufacturer, with 20 years of experience we supply these for medical quarantine, infection control, and field hospitals.

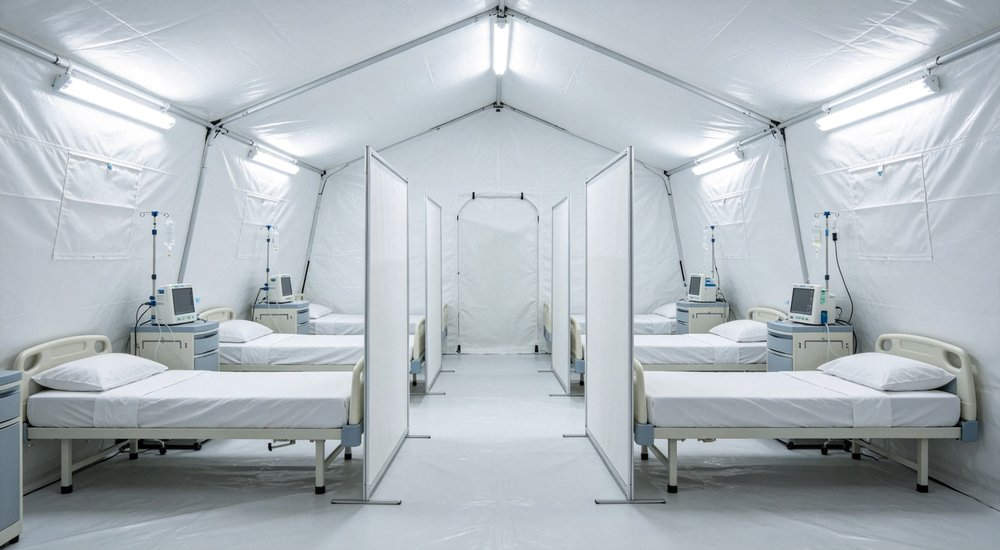

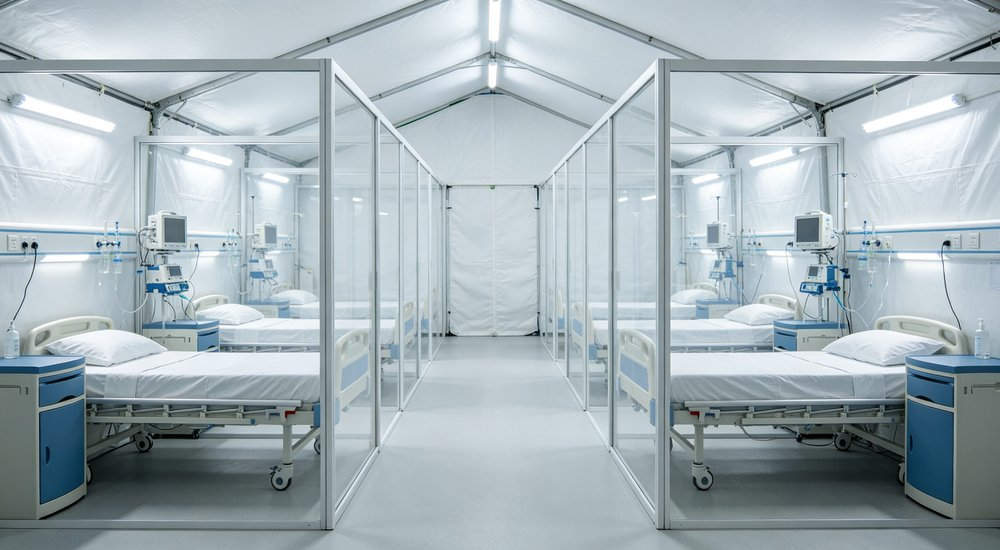

Interior of inflatable isolation tent with patient beds and medical equipment, bright lighting red and white inflatable emergency shelter for disaster relief operations

Isolation units maintain 5-15 Pa pressure differential, with HEPA filtration at 99.97% efficiency (0.3μm) and 12-20 air changes per hour.

Short answer: Choose a general emergency tent for shelter, accommodation, work, or basic medical support. Consider an isolation direction ONLY when you can define airflow, pressure differential, air changes, filtration, monitoring, alarms, power, and validation for the complete configuration. Isolation tent prices: $1,500 basic shell to $6,000+ complete negative pressure system.

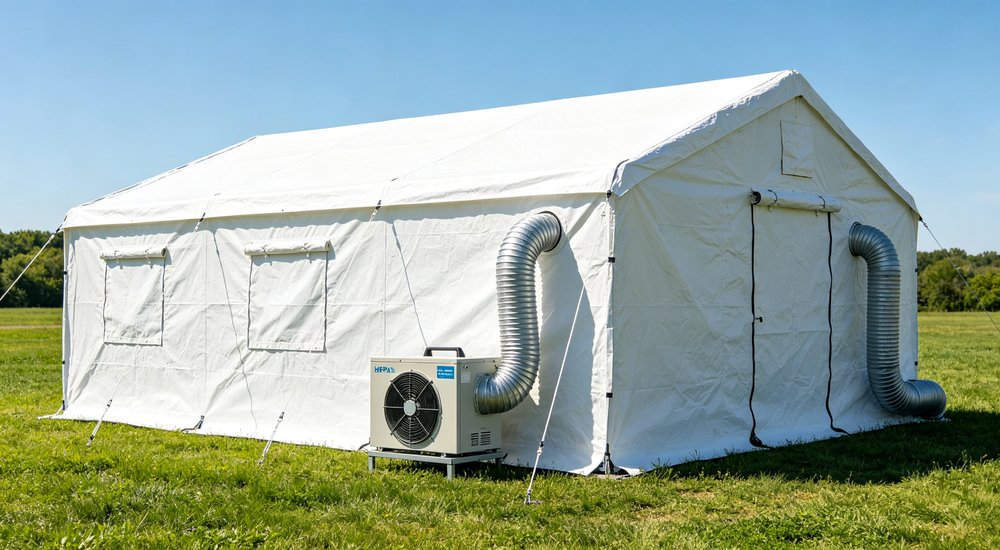

Exterior view of negative pressure inflatable isolation tent with ventilation system, red and white, green grass red and white inflatable emergency shelter for disaster relief operations

1. Side-by-side comparison	7. HEPA filtration explained
2. Shell vs complete system	8. Monitoring and alarms
3. Airflow direction	9. Power and backup
4. Pressure differential	10. Doors and movement
5. Air changes per hour	11. When general tent is enough
6. Connected modules	12. What to send suppliers

How many air changes per hour does an isolation tent need?

Negative pressure isolation tents require 12-15 air changes per hour (ACH) for patient rooms. HEPA H13 filtration removes 99.97% of 0.3μm particles. Pressure differential should be -15 to -25 Pa relative to adjacent areas. Confirm these specs with the manufacturer for your intended use.

What door interlock and pass-through options exist?

Isolation tents typically feature an airlock entry with two doors (staff entry and patient entry) that cannot be opened simultaneously. Pass-through windows (30×40cm) allow supplies to be transferred without breaking containment. Some models include built-in glove ports for external monitoring.

How often do HEPA filters need replacement?

HEPA H13 filters typically last 6-12 months under normal use, or 3-6 months in high-particulate environments. Filter replacement should be done by trained staff wearing appropriate PPE. Confirm filter availability, replacement cost, and whether the unit has filter change indicators.

What power backup and alarm systems are recommended?

Isolation tents require uninterrupted power for ventilation — a backup generator or UPS is essential. Pressure alarms alert staff if negative pressure is lost. Some systems include battery backup for alarms. Confirm power consumption (typically 1-3 kW) and runtime for backup systems.

Technical details: seam sealing uses HF-welded seams with additional tape for airtight integrity. Staff PPE entry follows a defined donning sequence in the airlock. Patient monitoring ports allow vital sign checks without entry. Waste disposal uses sealed biohazard bags removed through a dedicated pass-through.

1. Side-by-side: Isolation Tent vs Emergency Tent

Additional search terms buyers use: pandemic isolation tent. These terms help match your specific operational requirements with the right product configuration.

Buyers often search for these related terms: inflatable isolation shelter. Understanding these variations helps you match the right product to your operational requirements.

Feature	General Emergency Tent	Isolation Support Tent
Primary purpose	Temporary covered space	Controlled space + environmental system
Air movement	Natural / basic ventilation	Defined airflow + pressure control
Pressure	None (ambient)	5-15 Pa positive or negative
Filtration	Optional / none	HEPA H13/H14 (99.97%+)
Air changes	4-6 ACH (comfort)	12-20 ACH (contaminated zone)
Monitoring	None	Pressure gauge + alarms
Power needed	Lighting only (optional)	1.5-3kW continuous + backup
Typical size	12-30m²	12-20m² + 2-4m² anteroom
Capacity	6-20 people	2-4 beds
Price range	$800-$3,500	$1,500-$6,000+
Setup time	15-30 min	30-60 min (with system)
Validation	Shelter docs only	Complete system commissioning

2. Shelter shell vs complete isolation system

The inflatable shell provides air-beam support, walls, openings, floor, and interfaces. It creates the physical boundary where the system operates. It does NOT create isolation by itself.

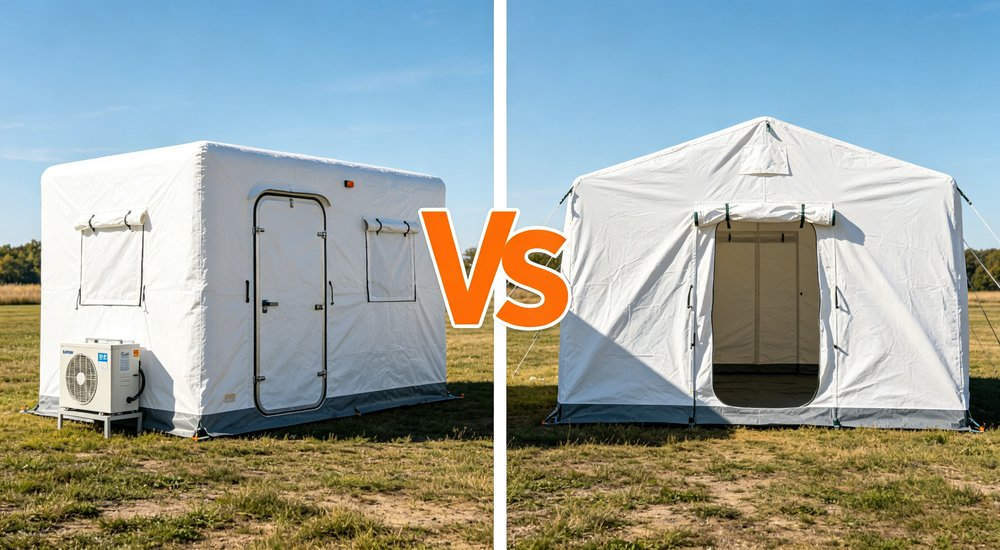

Isolation support tent vs emergency tent comparison showing differences, side by side, green grass red and white inflatable emergency shelter for disaster relief operations

The isolation tent system includes: air supply or extraction, HEPA filters, ducts, dampers, pressure sensors, displays, alarms, controls, power, and backup. Exact components depend on your project target.

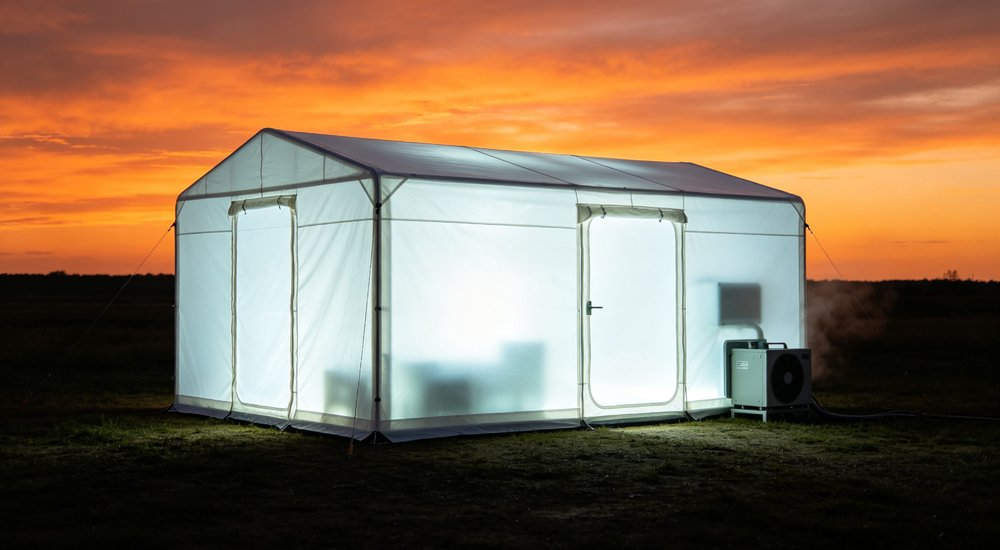

Night operation of inflatable isolation tent with interior lighting, medical workers on duty red and white inflatable emergency shelter for disaster relief operations

A 12-20m² portable isolation tent typically accommodates 2-4 beds, with a 2-4m² anteroom for donning/doffing PPE.

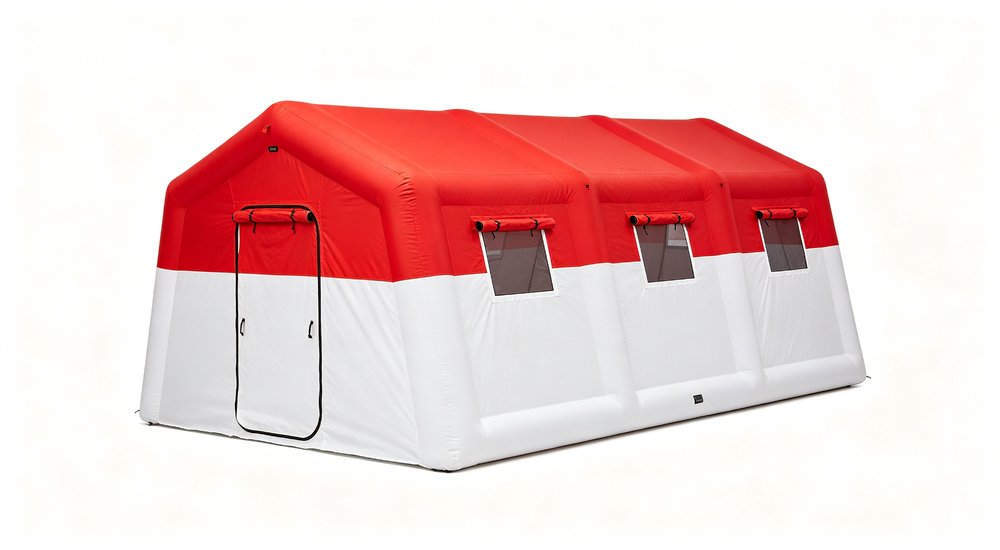

45 degree view of inflatable isolation tent on white background, red and white, product photography red and white inflatable emergency shelter for disaster relief operations

Check the number, position, size, and closure method of duct interfaces. A correctly sized shelter may still fail when interfaces are insufficient, blocked by equipment, or incompatible.

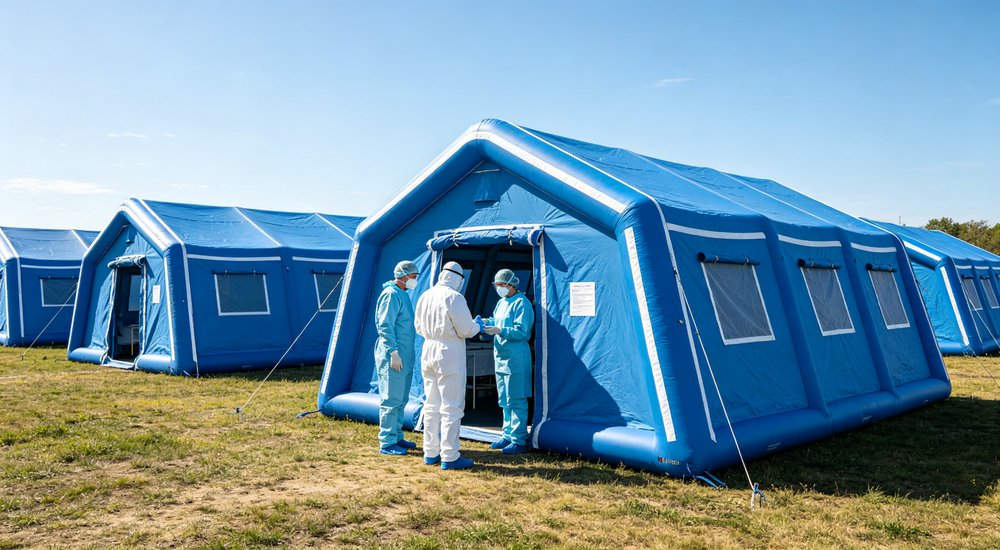

Isolation camp with rows of red and white inflatable isolation tents, green grass, blue sky, medical workers red and white inflatable emergency shelter for disaster relief operations

Ask the supplier to list: shell, standard accessories, environmental-control equipment, optional items, site-supplied work — separately. "Complete isolation tent" on one line is not enough.

3. Airflow direction changes the layout

General emergency space may use ordinary ventilation for comfort. Isolation support needs a stated airflow direction serving the intended room function.

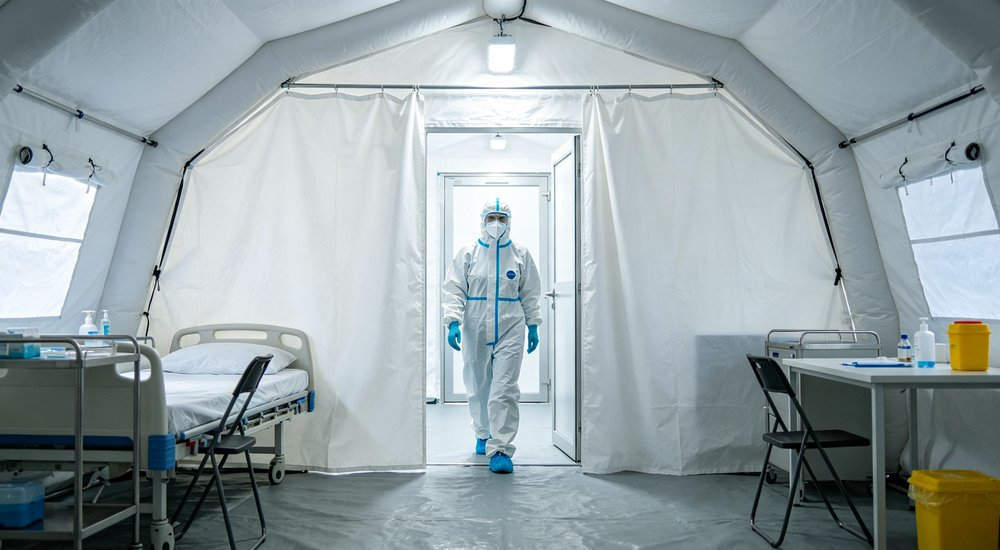

Anteroom buffer zone inside inflatable isolation tent, transition area with PPE, bright interior red and white inflatable emergency shelter for disaster relief operations

Doors, staff access, patient movement, equipment, ducts, and exhaust position can disturb that direction. A fan added without a layout may move air the wrong way. Power requirements: 1.5-3kW for ventilation and filtration, plus backup for continuous operation.

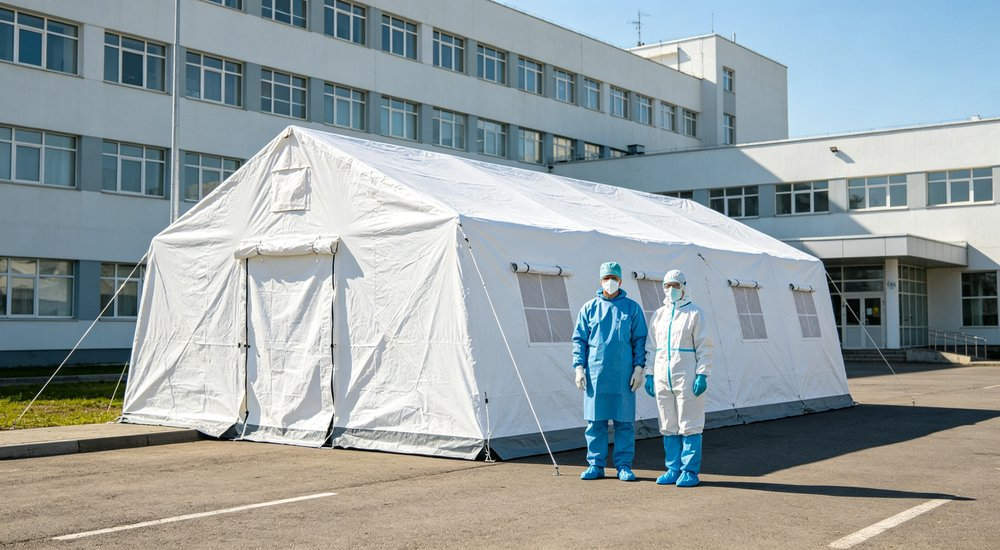

Hospital exterior with inflatable isolation tents set up outside, green grass, blue sky red and white inflatable emergency shelter for disaster relief operations

Request a drawing showing: controlled zone, adjacent area, air entry, air exit, doors, routes, major equipment. The airflow plan and shelter plan must describe the same configuration.

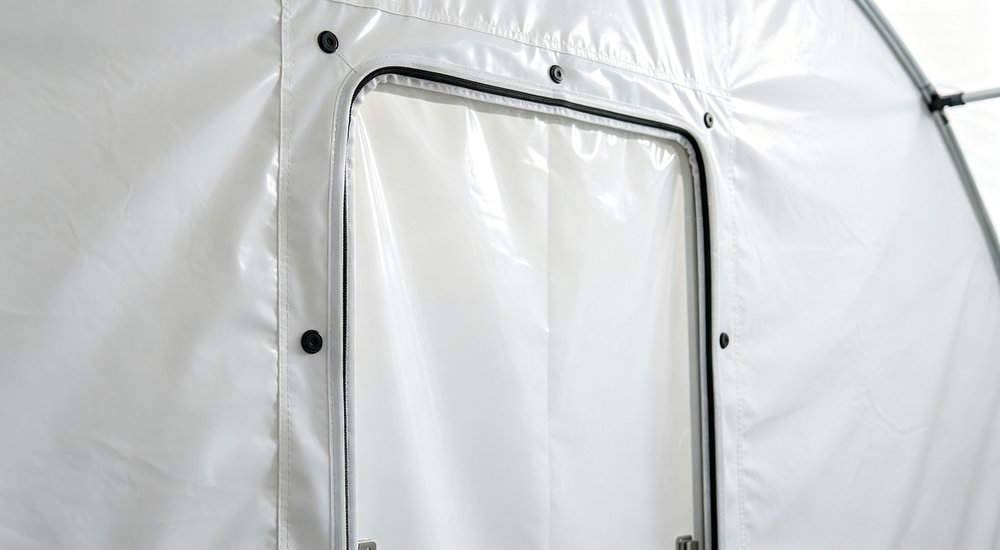

Airtight curtain inside inflatable isolation tent, fabric partition seal, bright interior red and white inflatable emergency shelter for disaster relief operations

4. Pressure differential is a system result

Pressure differential is a measured relationship between the controlled space and a reference area. It is NOT proven by tight fabric, closed doors, or visible wall movement.

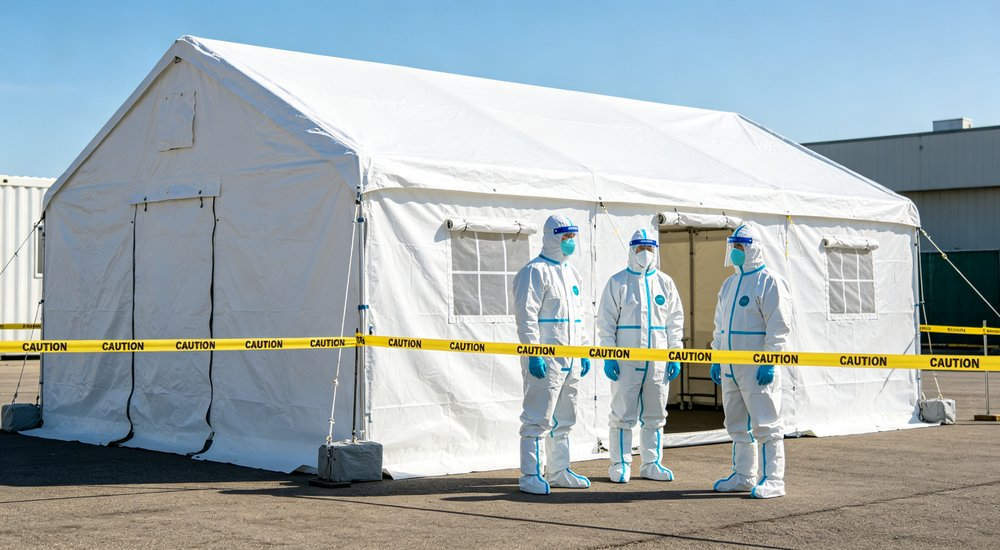

Pandemic response scene with inflatable isolation tents, medical workers in PPE, green grass, blue sky red and white inflatable emergency shelter for disaster relief operations

State the intended room function and applicable pressure target (typically 5-15 Pa for negative pressure isolation). The system must balance airflow, leakage, entrance use, filter resistance, and equipment conditions.

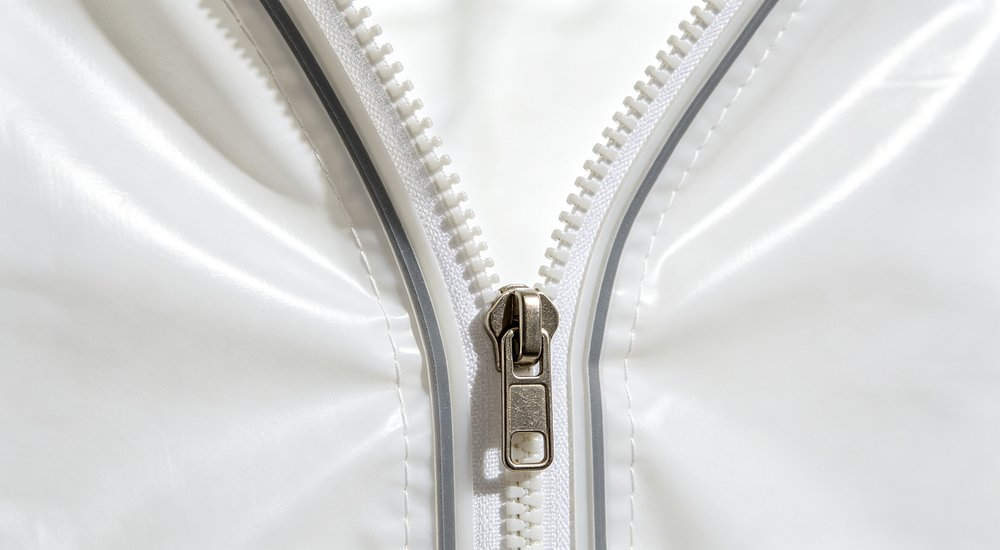

Airtight zipper detail on inflatable isolation tent, close-up of sealed zipper, bright lighting red and white inflatable emergency shelter for disaster relief operations

The supplier should identify: where pressure is measured, how the reference point is chosen, what happens when the reading leaves range. Do not accept an unsupported universal value.

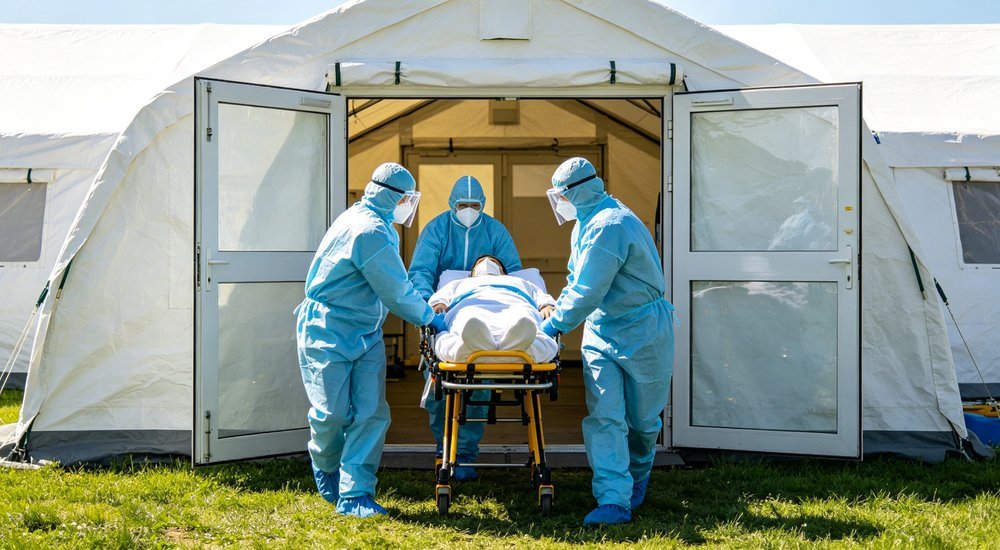

PPE transfer through anteroom of inflatable isolation tent, medical workers in protective gear red and white inflatable emergency shelter for disaster relief operations

5. Air changes per hour (ACH)

Air changes describe how the system replaces or removes air from the controlled volume over time. The required rate depends on room function and project criteria.

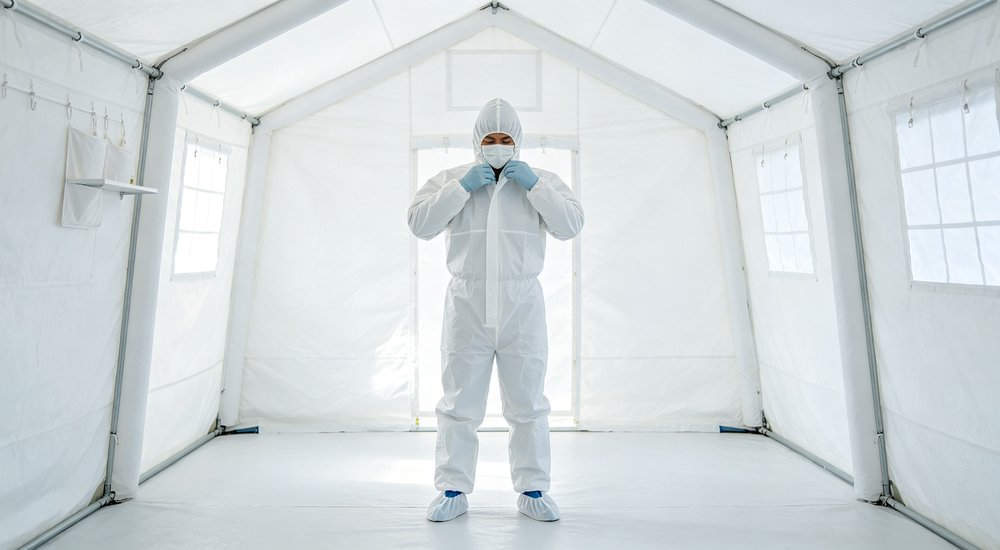

PPE donning area inside inflatable isolation tent anteroom, worker putting on protective gear red and white inflatable emergency shelter for disaster relief operations

Contaminated zones: 12-20 ACH. General areas: 6-12 ACH. Internal volume, occupancy, entrance opening, duct losses, filter resistance, temperature, and equipment condition all affect the result.

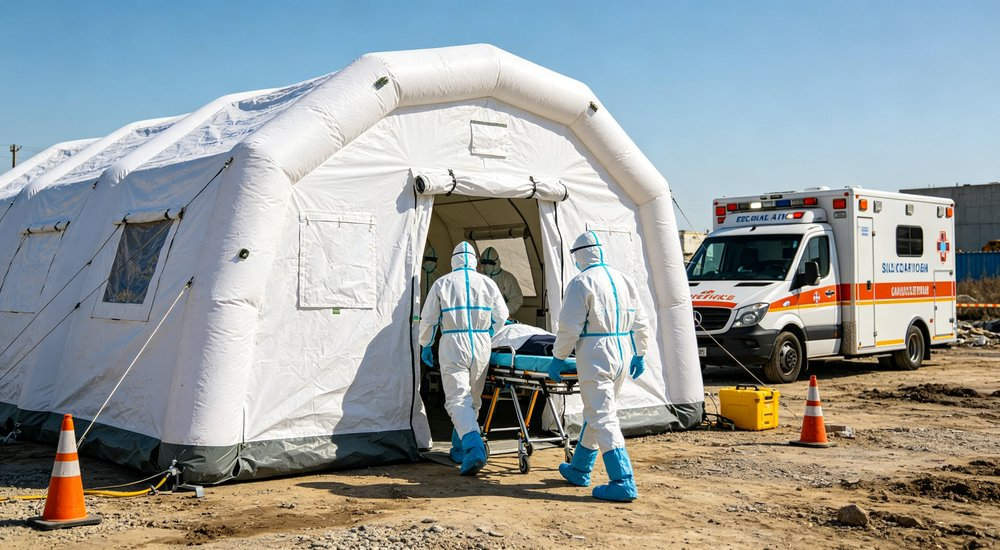

Deployment of inflatable isolation tent by medical workers, quick setup, green grass, blue sky red and white inflatable emergency shelter for disaster relief operations

A fan rating alone does not prove performance inside the erected shelter. Compare clear shelter volume, duct path, filter, and fan as one operating arrangement.

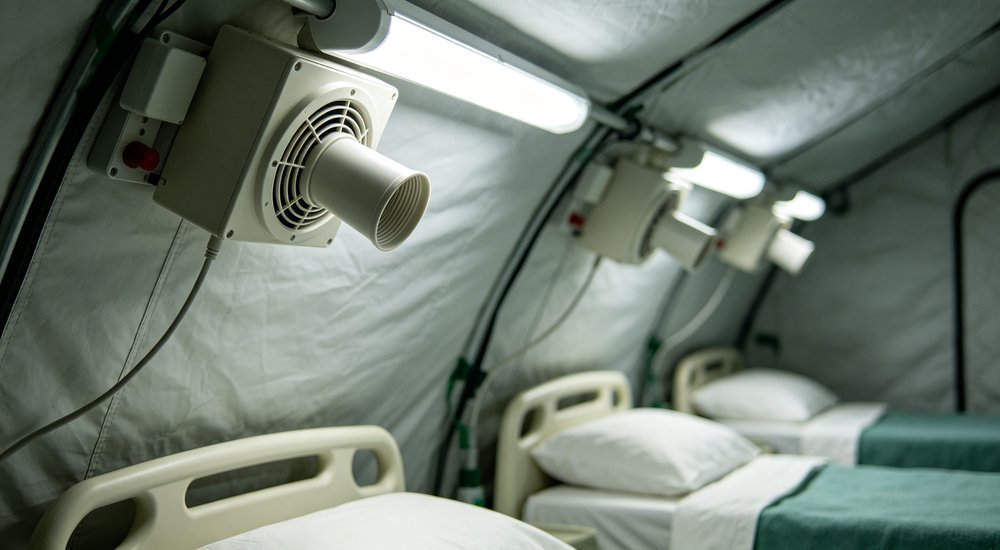

Individual ventilation vent on inflatable isolation tent wall, close-up of air outlet, bright lighting red and white inflatable emergency shelter for disaster relief operations

Ask for the calculation basis and complete operating condition. The response should show which shelter volume, filter state, duct arrangement, and equipment setting support the proposal.

6. Connected modules and zoning

Separate modules may support entry, changing, controlled space, staff work, equipment, or transition functions. Connections improve zoning when each module has a clear responsibility. See when modular systems make sense.

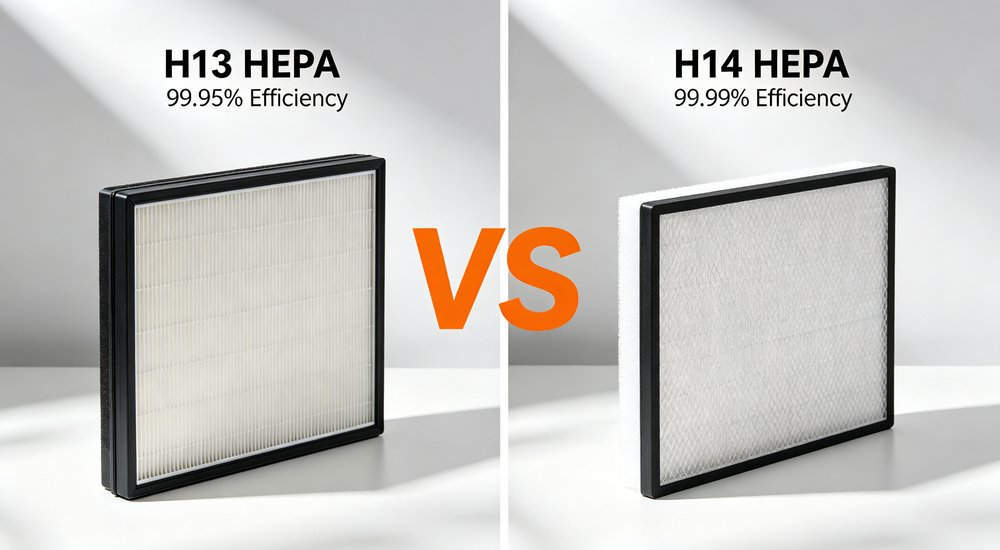

H13 vs H14 HEPA filter comparison showing filtration efficiency difference, product shot red and white inflatable emergency tent for disaster relief operations

Corridors, connector kits, partitions, end walls, doors, ducts, floors, and controls must remain compatible. Connection does NOT prove every module shares the same pressure or airflow condition.

Certification label on inflatable isolation tent showing EN 1822 HEPA rating, close-up detail red and white inflatable emergency shelter for disaster relief operations

Request the complete layout and operating relationship between modules. There is no universal maximum arrangement.

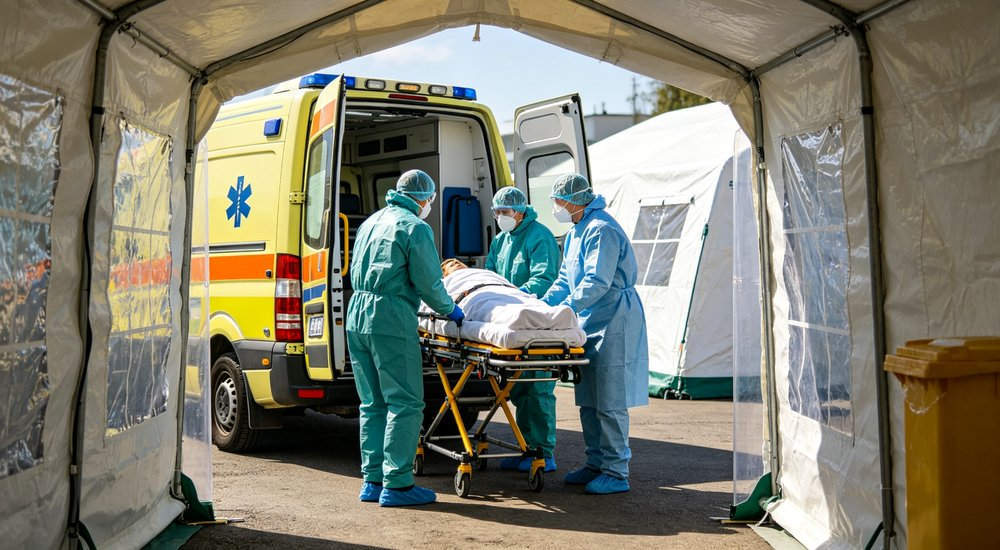

Patient transfer from inflatable isolation tent to ambulance, medical workers, green grass red and white inflatable emergency shelter for disaster relief operations

7. HEPA filtration explained

Filtration may be required for supply air, extracted air, or both. The project must define what the filter is expected to address.

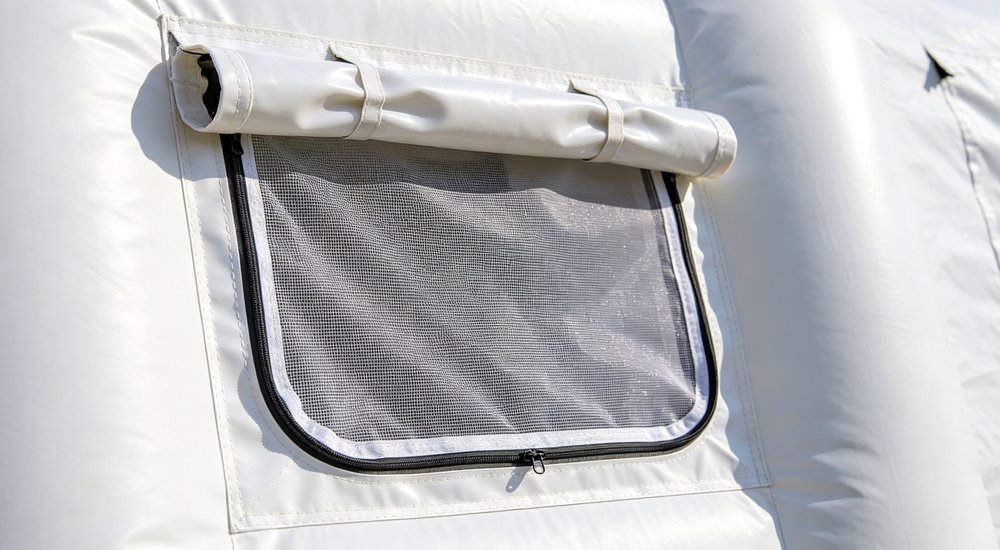

Ventilation window on inflatable isolation tent, close-up of adjustable vent, bright lighting red and white inflatable emergency shelter for disaster relief operations

HEPA H13: 99.95% efficiency at 0.3μm. HEPA H14: 99.995%. Filter type, installation, sealing, airflow, pressure loss, replacement, handling, and disposal all matter.

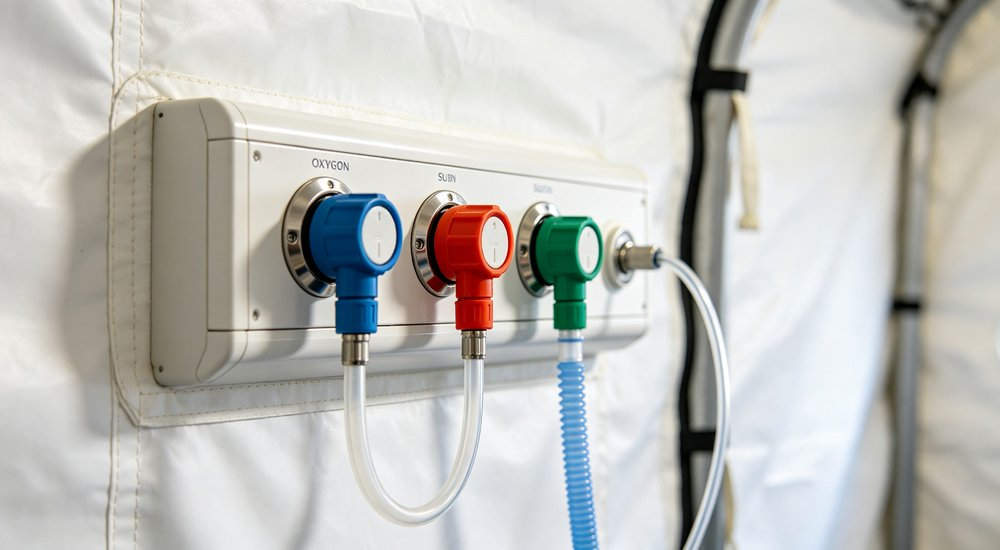

Medical gas supply for inflatable isolation tent, oxygen cylinder setup, product shot red and white inflatable emergency shelter for disaster relief operations

A loose filter name or image does not show how it performs in the complete path. Request configuration-specific filter information and replacement scope. Do not convert a filter spec into a medical or infection-control claim.

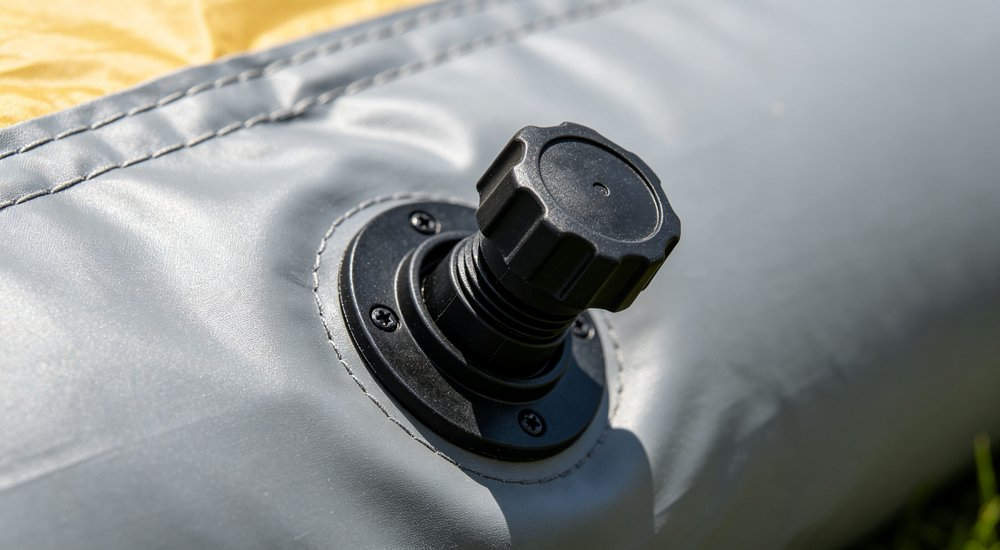

Air valve on inflatable isolation tent, close-up of inflation valve, bright lighting red and white inflatable emergency shelter for disaster relief operations

8. Monitoring and alarms

A controlled system needs a way to show its operating condition. Pressure display, airflow indication, filter status, or other monitoring may be relevant.

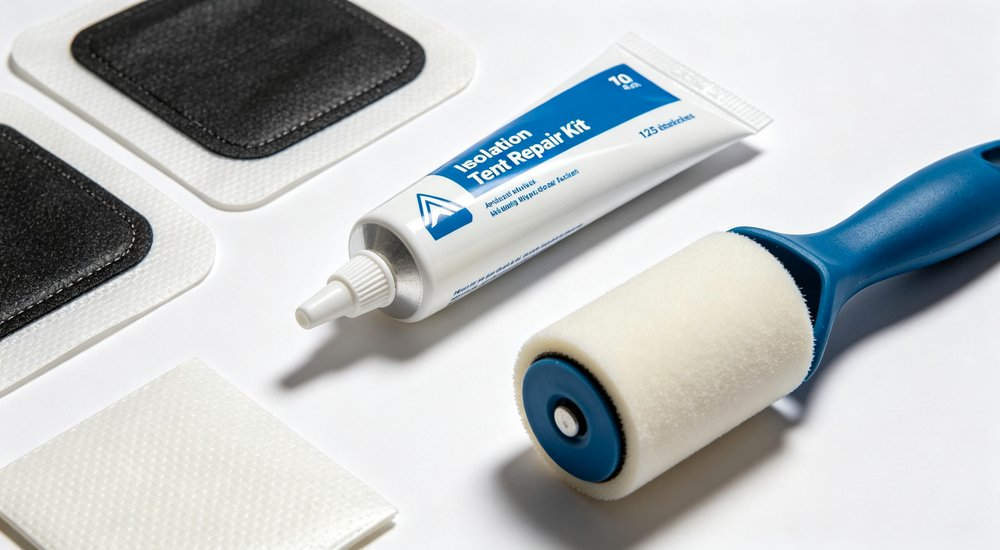

Inflatable tent repair kit with glue patches valve wrench laid out, product shot red and white inflatable emergency shelter for disaster relief operations

Define: what must be monitored, where displayed, who responds, which condition triggers an alarm. An alarm without a response method does not protect the process.

Simple interior of inflatable isolation tent with basic beds, bright lighting red and white inflatable emergency shelter for disaster relief operations

The supplier should state: sensor positions, display range, alarm conditions, power need, available records. These must belong to the offered system.

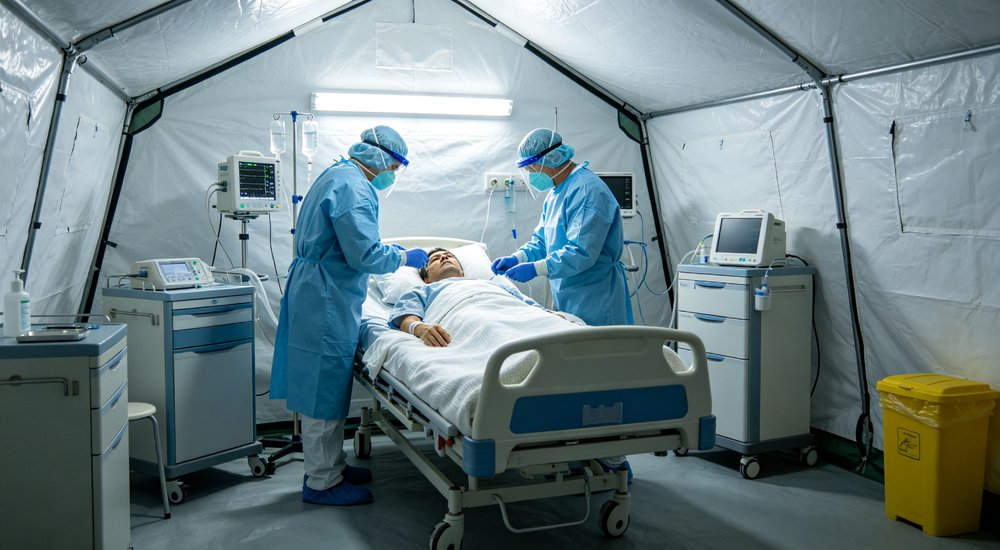

Actual field use of inflatable isolation tent showing medical workers in operation, green grass, blue sky red and white inflatable emergency shelter for disaster relief operations

9. Power continuity can change the whole decision

A general tent remains a shelter during a power outage. An isolation system may lose airflow, pressure control, monitoring, or alarms when powered equipment stops.

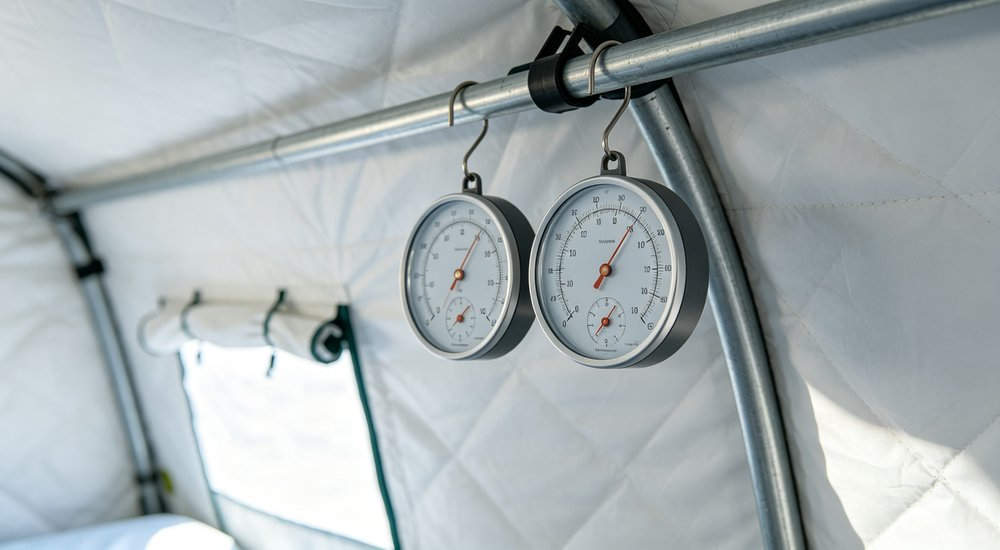

Thermo hygrometer inside inflatable isolation tent, temperature and humidity monitor, product shot red and white inflatable emergency shelter for disaster relief operations

List every powered component and its role. State: voltage/source, cable route, distribution, protection, expected duration, backup direction.

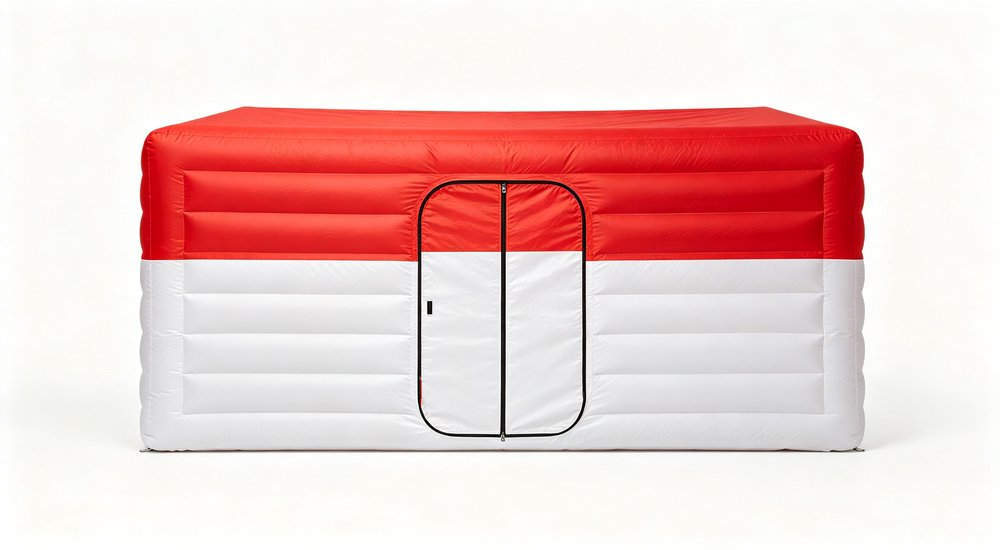

Front view of inflatable isolation tent on white background, red and white, product photography red and white inflatable emergency shelter for disaster relief operations

If a generator is the only backup, also check: start time, which functions stop during transfer, fuel replenishment, connection method. Backup power must match critical loads, required duration, and site operating steps.

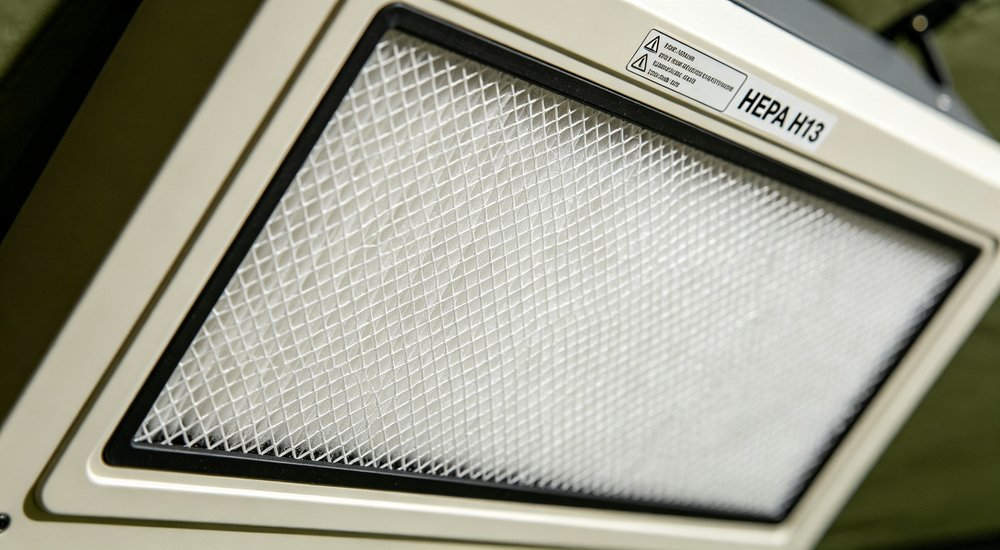

H13 HEPA filter unit for negative pressure isolation system, portable air filter with hoses, product shot red and white inflatable emergency tent for disaster relief operations

The response should explain what remains functional during an interruption and what action users must take. Do not claim continuous isolation without a verified complete power plan.

10. Doors and movement affect control

Every door opening changes the relationship between the controlled space and surroundings. Frequent movement, large equipment, stretchers, and simultaneous doors alter system behavior.

Define entry and exit, staff access, equipment movement, waiting, and next zone. Consider whether an additional transition space (anteroom) is required.

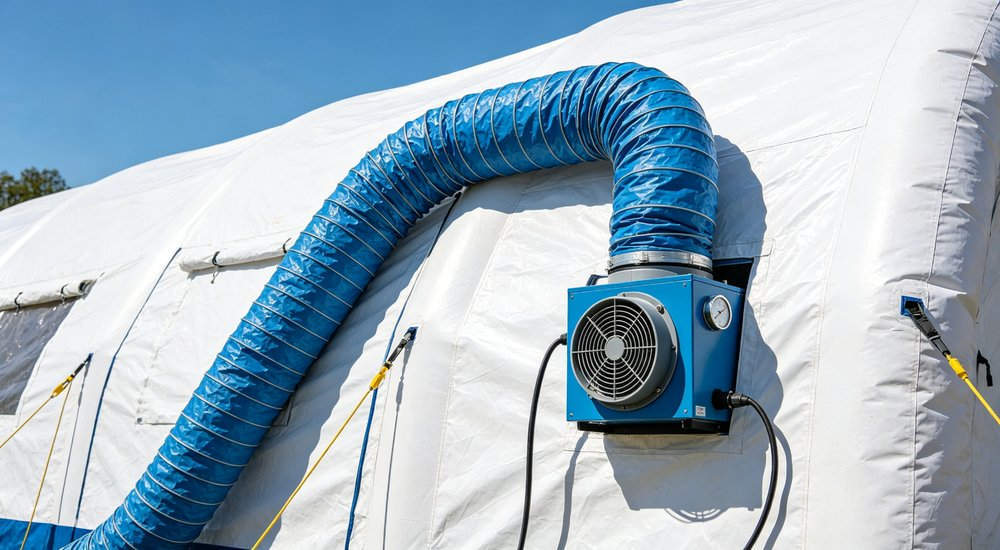

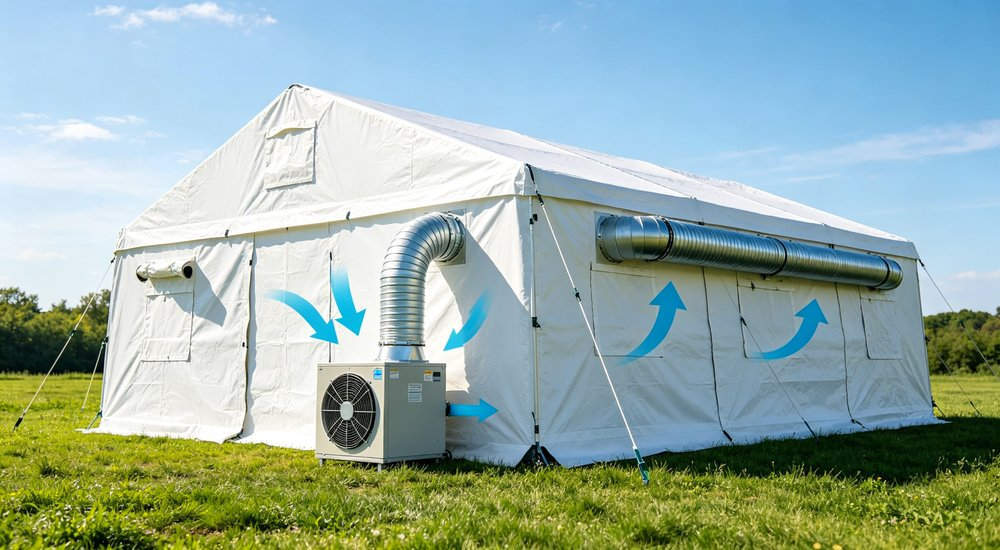

Ventilation system running on inflatable isolation tent, fan unit with ducting, green grass red and white inflatable emergency shelter for disaster relief operations

A door may be wide enough for a stretcher but leave too little turning space inside. Users may then keep it open longer than expected. Check clear width, door position, internal route, and equipment turning space together.

Airtight test of inflatable isolation tent, worker checking pressure seal, quality control red and white inflatable emergency shelter for disaster relief operations

11. When is a general emergency tent enough?

Choose a general tent when the task is: weather protection, accommodation, staff support, ordinary waiting, equipment cover, or medical-support space WITHOUT controlled isolation requirements. Start with emergency tent basics.

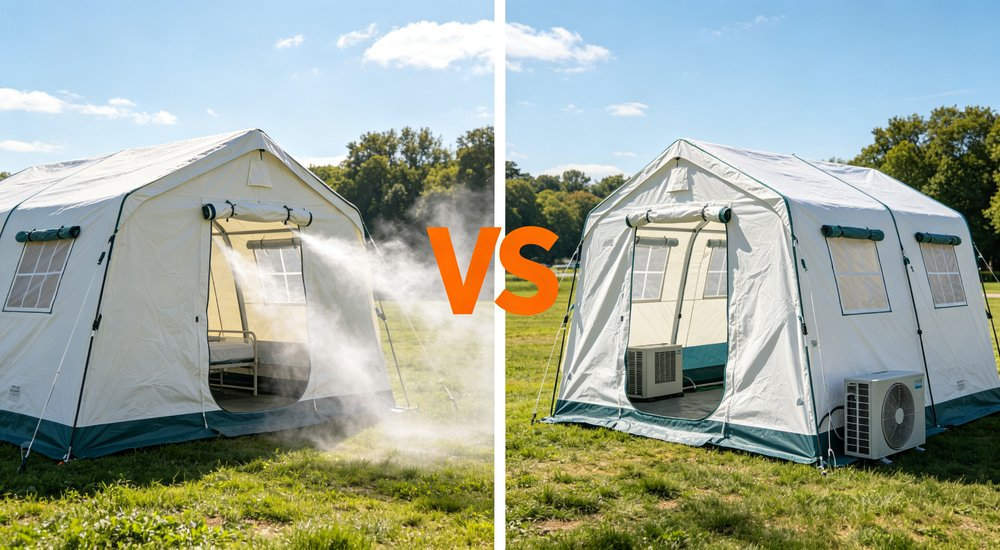

Positive pressure vs negative pressure isolation tent comparison showing airflow difference, diagram style red and white inflatable emergency shelter for disaster relief operations

This reduces unnecessary system complexity, utilities, monitoring, maintenance, and training. It also keeps product claims aligned with the actual task.

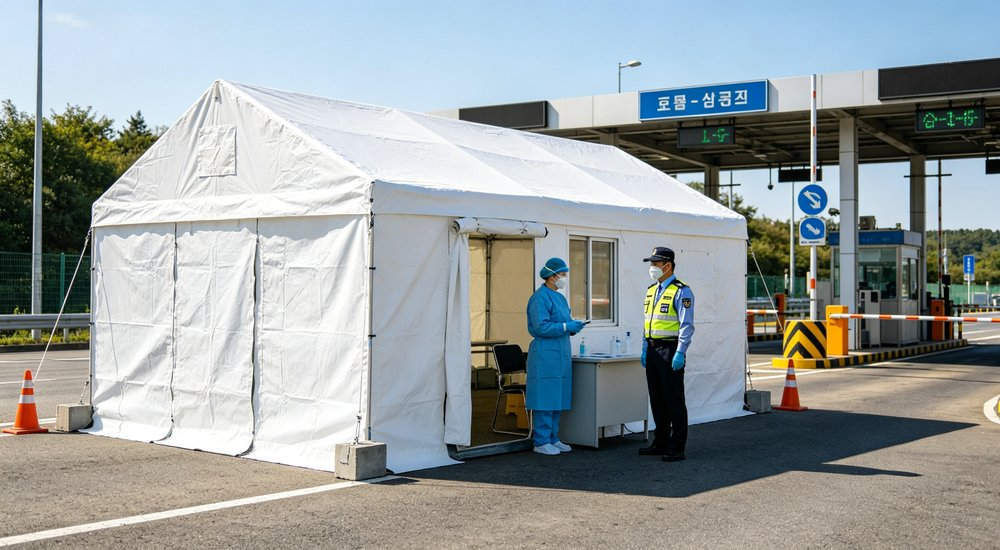

Border quarantine station with inflatable isolation tents, border control area, green grass red and white inflatable emergency shelter for disaster relief operations

Do not add isolation language merely to make the offer sound more advanced. A simpler configuration is better when it fully solves your defined problem.

When isolation makes sense: defined controlled-room function, airflow/pressure criteria, filtration scope, monitoring, alarms, power, operating method, validation requirement, and staff who can run the system.

12. What to send suppliers (and what to expect back)

Send: room function, occupants, movement, adjacent areas, airflow direction, pressure and ACH criteria, filtration, monitoring, alarms, power, backup, site, weather, duration, documents.

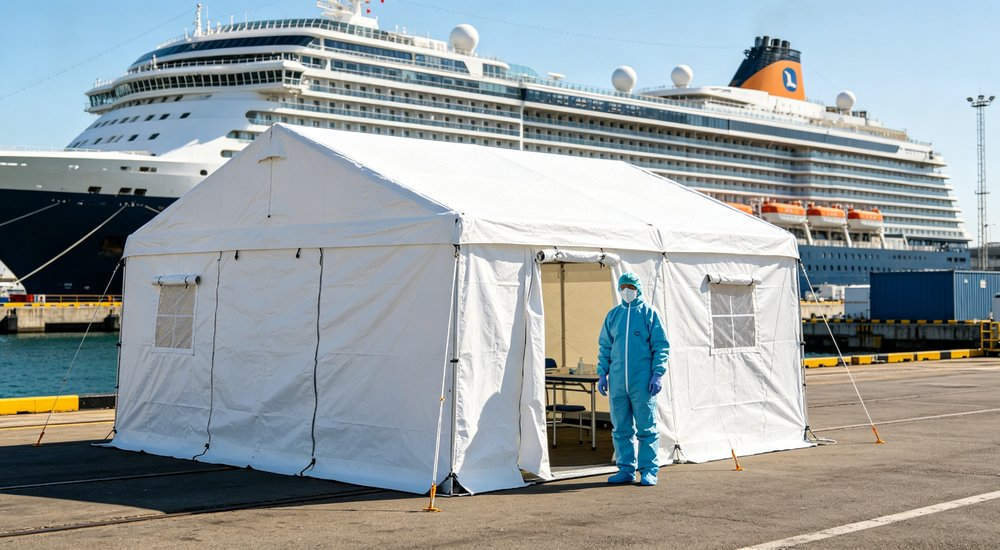

Cruise ship isolation setup with inflatable tents on deck, maritime quarantine scenario red and white inflatable emergency shelter for disaster relief operations

Request: shelter layout, clear volume, air beams, doors, zones, ducts, airflow equipment, filters, sensors, controls, alarms, power, floor, anchoring, packing, maintenance, validation scope. Confirm accessory scope.

Comparison table of isolation tent vs emergency tent specifications, product comparison layout red and white inflatable emergency shelter for disaster relief operations

MOQ & lead time: Standard shell: MOQ 1-10 units, 15-30 days. Complete isolation system: MOQ 5+, 30-45 days. Certifications: CE, ISO 9001, CPAI-84, NFPA 701. HEPA filters: EN 1822 / IEST RP-CC001.

Community monitoring station with inflatable isolation tent, health workers, green grass red and white inflatable emergency shelter for disaster relief operations

❌ When to REJECT a supplier proposal

Uses "isolation" or "negative pressure" without defining the complete system
Only shows a fan, filter, or sealed-looking tent — no airflow diagram
Borrowed pressure/ACH/filtration values from another model
No power plan or backup strategy
No monitoring or alarm response defined
Shelter evidence and component evidence mixed into "system proof"
No validation/commissioning scope stated

Practical test: If the supplier cannot show pressure measurement points, airflow direction, and what happens when the door opens — it is not an isolation system, it is a tent with a fan.

See standard medical tent applications. including pandemic response, infection control, quarantine facility, negative pressure room, and epidemic shelter use cases.

Simple inflatable isolation tent exterior view, red and white, basic model, green grass, blue sky red and white inflatable emergency shelter for disaster relief operations

Compare structure types.

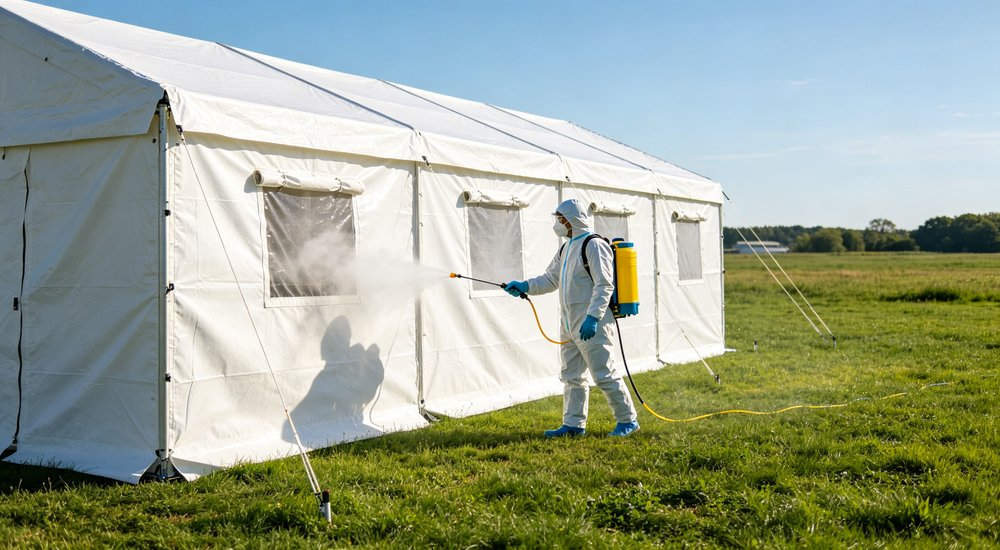

Exterior cleaning of inflatable isolation tent after use, worker washing PVC fabric red and white inflatable emergency shelter for disaster relief operations

Isolation Tent Buying Checklist

□ Room function defined (negative pressure / positive pressure / general)
□ Pressure target stated (5-15 Pa typical)
□ Air changes per hour specified (12-20 ACH contaminated zone)
□ HEPA filter grade confirmed (H13/H14)
□ Airflow diagram provided (supply + exhaust paths)
□ Pressure monitoring and alarms included
□ Power requirements calculated (1.5-3kW)
□ Backup power plan stated
□ Anteroom/transition space planned if needed
□ Door width and turning space verified for stretchers
□ Validation/commissioning scope defined
□ Certifications in writing (CE/ISO 9001/CPAI-84/NFPA 701)
□ MOQ and lead time confirmed
□ Filter replacement and maintenance plan provided
□ Failure response procedure documented

isolation tent for sale: Isolation tent for sale inquiries typically specify room count and filtration grade. negative pressure tent manufacturer: As a negative pressure tent manufacturer, we control every seam and seal. quarantine tent: A quarantine tent requires controlled air exchange and sealed entry. HEPA filtration tent: HEPA filtration tent systems remove 99.97% of airborne particles. infection control tent: Infection control tent design prioritizes air direction and staff safety.

Frequently Asked Questions

1. How much does an isolation tent cost?

Isolation tent prices range from $1,500 for a basic shell to $6,000+ for a complete negative pressure isolation tent with HEPA filtration, monitoring, alarms, and backup power. Always compare the complete system, not just the tent. CE certified factory price units include HEPA H13 filtration meeting EN 1822 standards.

2. Is every enclosed inflatable tent an isolation tent?

No. An enclosed shell provides temporary space, but medical isolation tent requires defined airflow, pressure differential, air changes, filtration, monitoring, alarms, power, and an operating method. Doors, leakage, ducts, and equipment condition all affect the result.

Chinese factory workers with Asian faces manufacturing inflatable isolation tents, bright workshop red and white inflatable emergency shelter for disaster relief operations

3. Does adding an exhaust fan create negative pressure?

Not by itself. A fan may influence airflow, but negative pressure is a measured relationship under defined conditions. Shelter volume, leakage, doors, ducts, filters, fan setting, and reference area all matter. One fan rating cannot prove system-level performance.

4. Is a HEPA filter always required?

There is no universal answer. The project must define whether filtration applies to supply air, extracted air, or another path. HEPA H13 = 99.95% at 0.3μm; H14 = 99.995%. Filter type, sealing, airflow, pressure loss, replacement, and disposal all matter. A filter name alone is not proof.

5. Can an isolation tent operate without electricity?

Only if the verified design supports required functions without powered equipment — which should not be assumed. Most active airflow, monitoring, alarms, and controls depend on power. List every powered component, supply, cable route, protection, duration, and backup.

6. Can the same tent switch between general and isolation use?

Only when the exact shell, interfaces, systems, cleaning, operating method, and validation allow the change. Removing or adding a fan does not automatically change the product role. Define both use cases and ask which components, settings, checks, and documents apply to each.

7. Does an isolation tent need an anteroom?

It depends on room function, movement, clothing change, equipment transfer, pressure concept, and project criteria. A transition module may help separate routes or support pressure, but it also adds space, doors, connections, utilities, and operating steps. Map entry and exit before selecting it.

8. What happens when an alarm activates?

The project needs a defined response, not just an audible warning. This may include checking doors, power, filters, ducts, fan operation, sensors, and user movement. It may also require restricting entry, moving occupants, activating backup, or repeating checks. Identify who receives the alarm and what record is required.

9. Can several isolation modules connect?

Some systems use connectors, corridors, or modules, but connection is not universal. Each module changes volume, doors, leakage, airflow, sensing, controls, utilities, and responsibility. Ask for one system drawing and the control relationship between spaces.

10. What is the minimum order quantity?

Standard shell: MOQ 1-10 units, 15-30 days. Complete isolation system with custom configuration: MOQ 5+ units, 30-45 days. Confirm with the supplier before ordering.

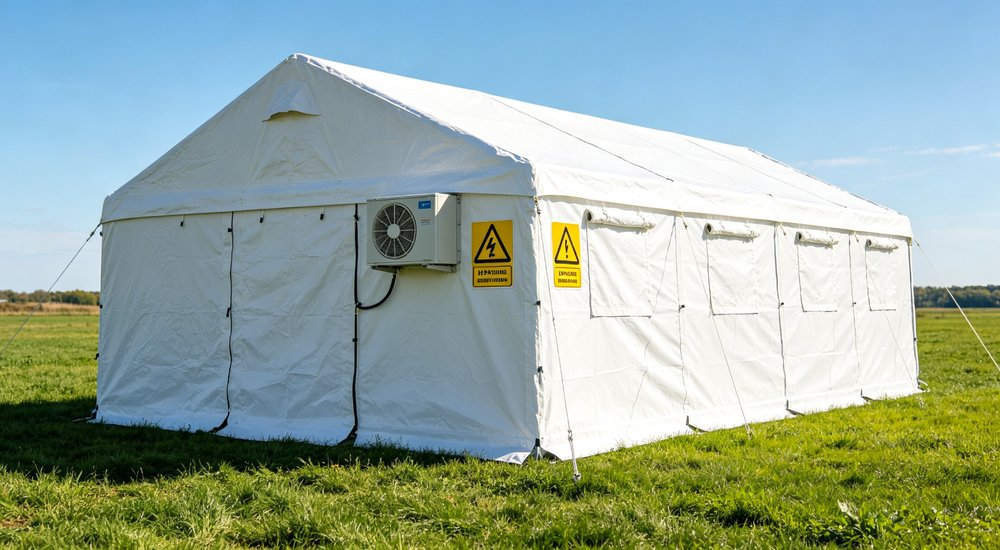

Exterior view of inflatable isolation tent in actual use showing deployment, FAQ illustration, green grass red and white inflatable emergency shelter for disaster relief operations
